Vanhua S37i
T31L, IMX307
- Manufacturer:
- Vanhua
- Model:
- S37i
- Variant:
- n/a
- Soc:
- T31L
- Image sensor:
- IMX307
- Wireless module:
- n/a
- Ethernet:
- true
- Secure boot:
- n/a
- Cloner mode:
- n/a
- Description:
- 16MB
- Installation:
- n/a
- Firmware link:
- thingino-vanhua_s37i_t31l_imx307_eth.bin
Interactive Module Illustrations
Hover over highlighted points to identify ports and connections. Click for details.

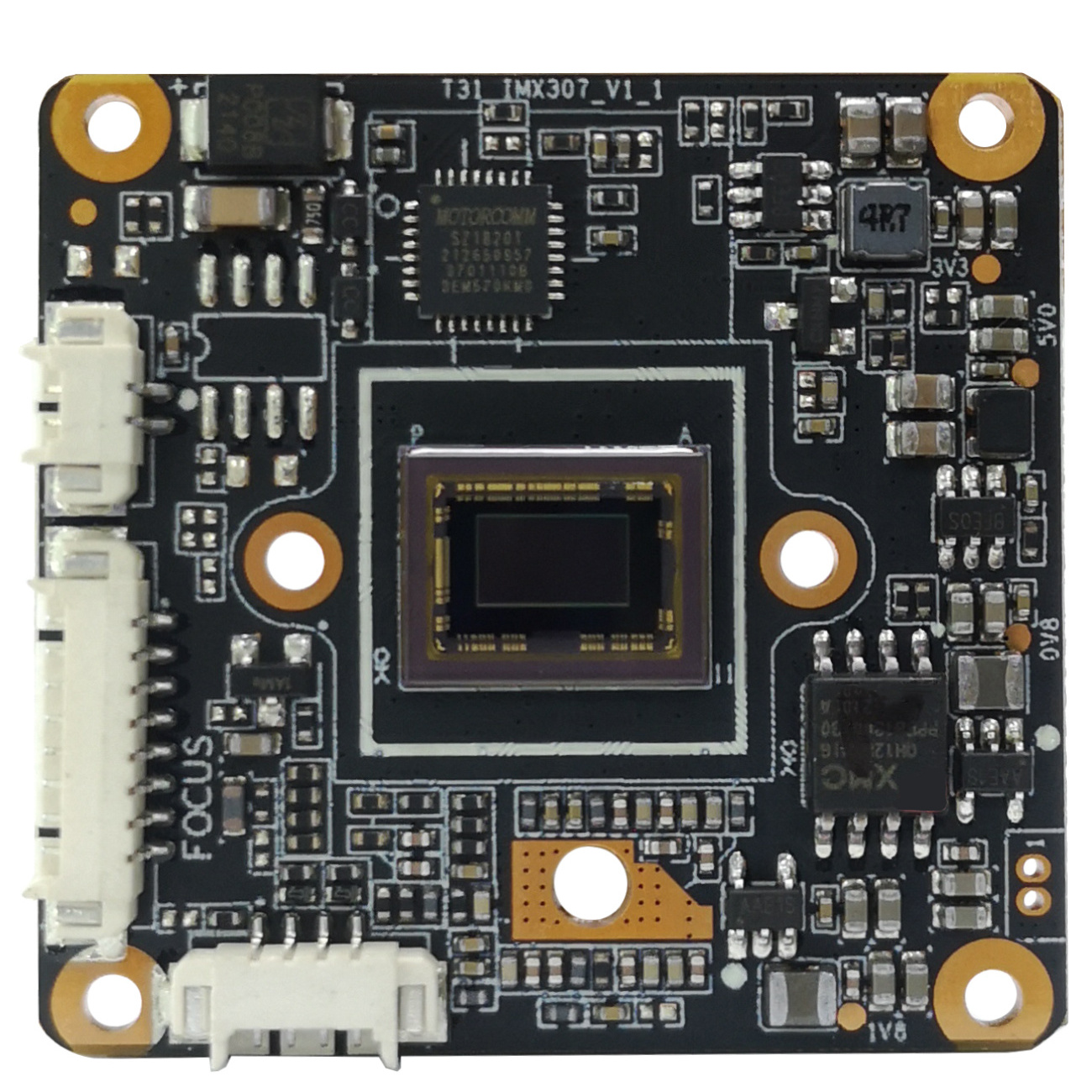

S37 Front
Quick reference:
- IR-CUT pin 1
- IR-CUT pin 2
- focus?
- focus?
- focus?
- focus?
- focus?
- focus?
- focus?
- focus?
- Photosensitive input
- Red-blue alarm output
- Infrared Light Output
- White Light Output
- unknown
- unknown
Click a pinpoint
Select a highlighted port or connector on the diagram to see details.

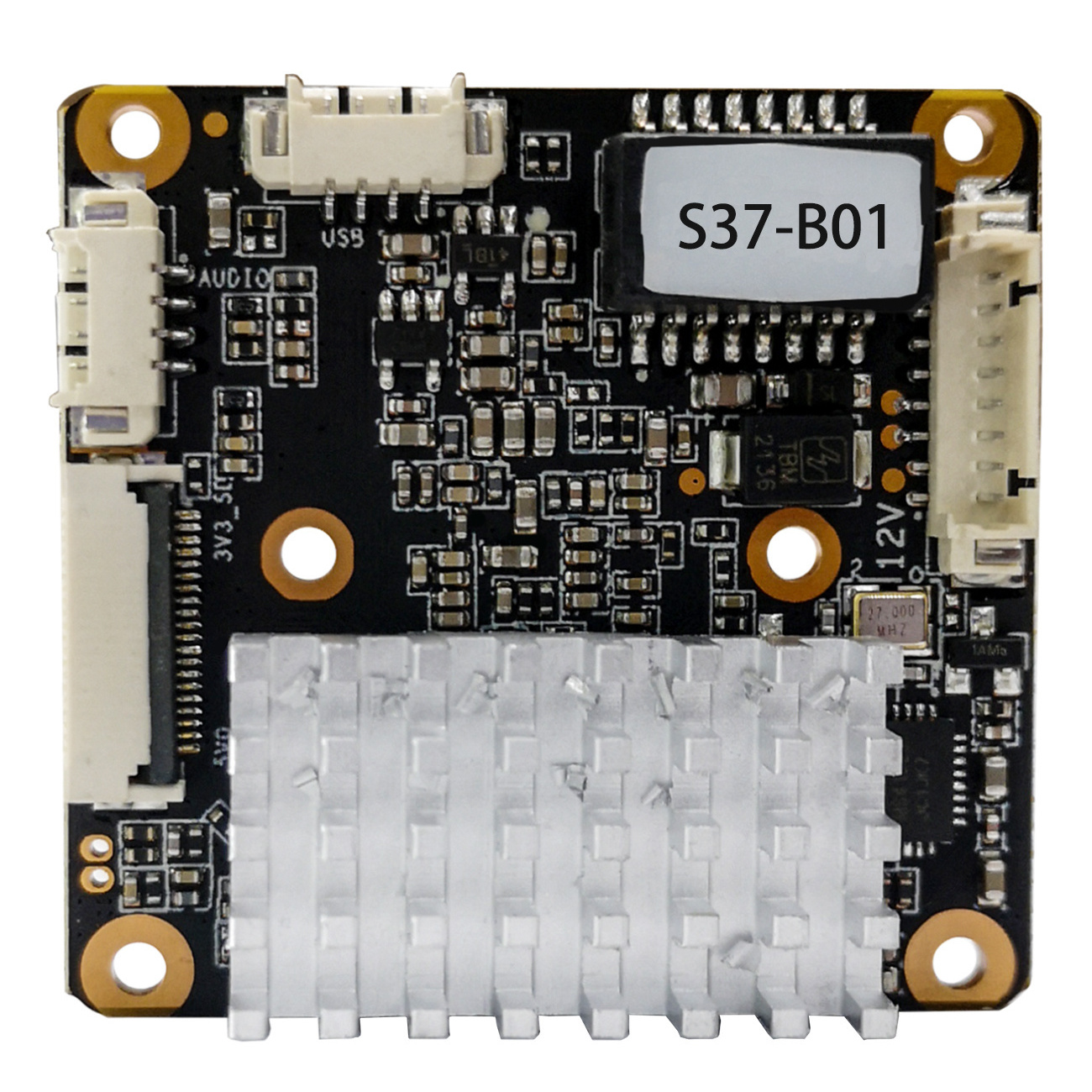

S37 Back
Quick reference:
- Ground
- Microphone input
- Ground
- Audio output (unamplified)
- DC 12V+
- DC 12V-
- Ethernet TX- Green
- Ethernet TX+ White-Green
- Ethernet RX- Blue
- Ethernet RX+ White-Blue
- Ethernet Link LED
- Ethernet Activity LED
- Ground
- USB Data Positive
- USB Data Negative
- USB Voltage
- unknown
- unknown
- Ground
- UART RX
- UART TX
